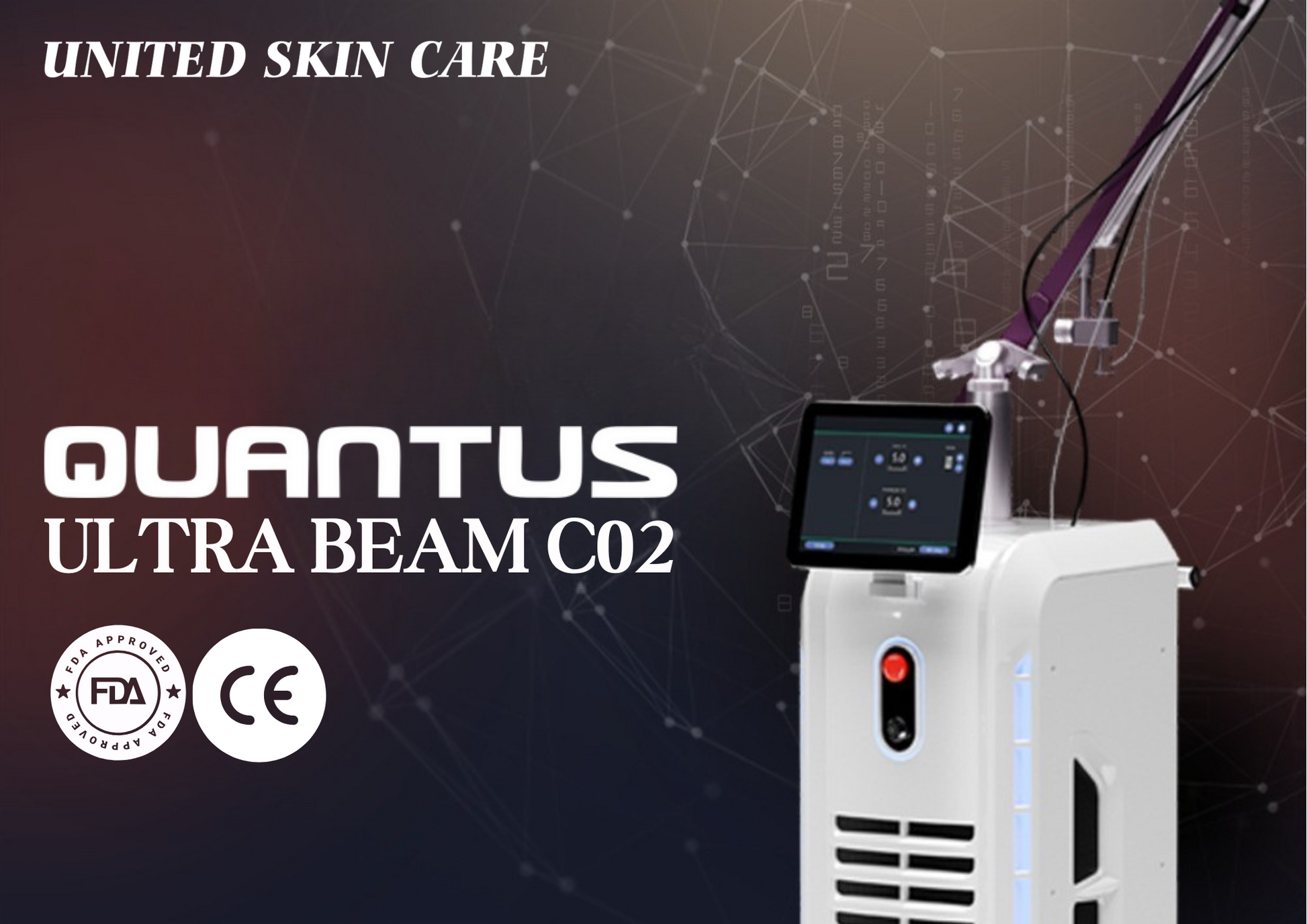

Quantus Ultra Beam CO2 — The Most Precise Fractional CO2 Laser for Clinical Dermatology

True 60W power to tissue. 8 spot patterns. 6 treatment modes. South Korean articulated arm. One machine for every advanced skin concern your clinic treats.

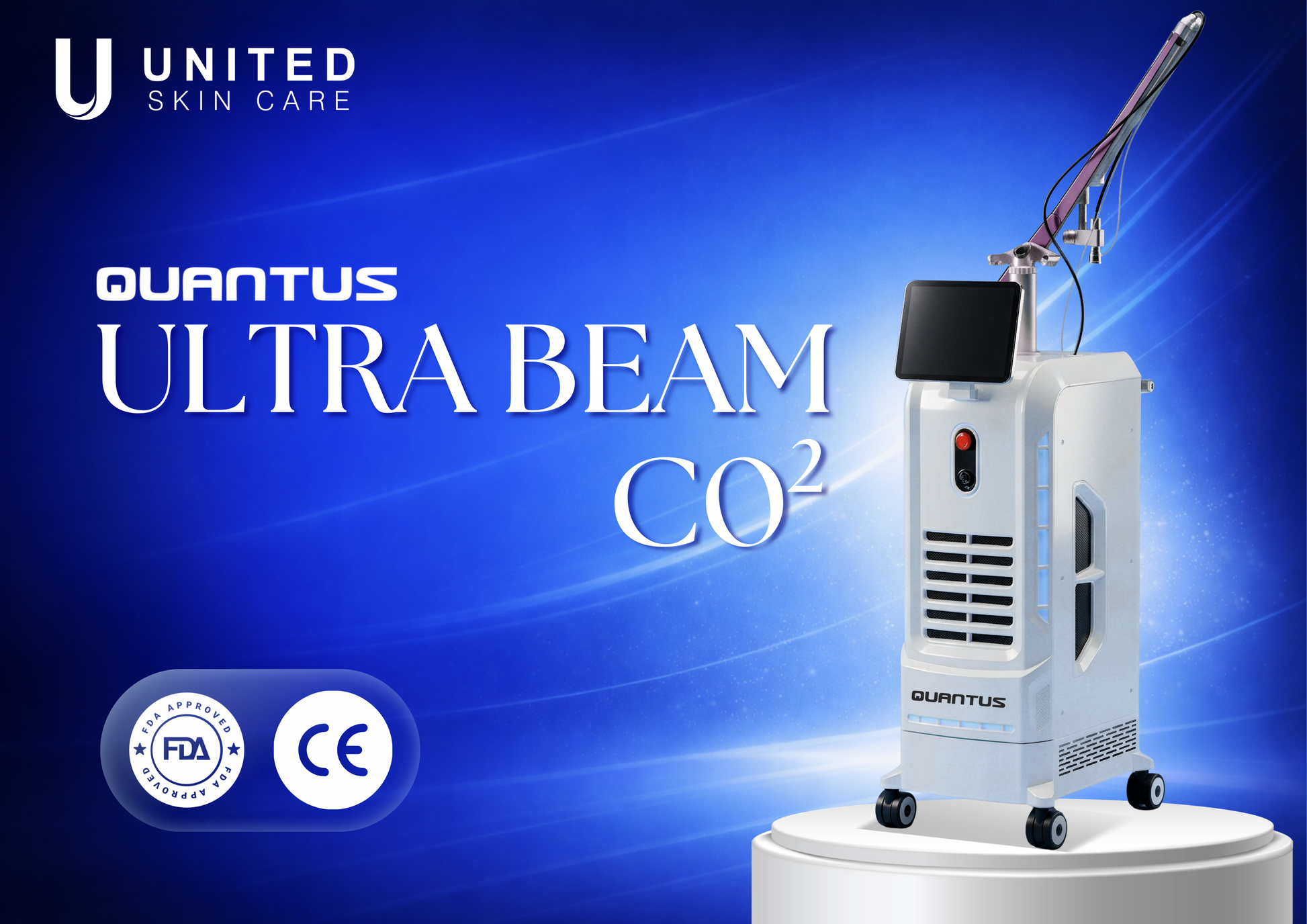

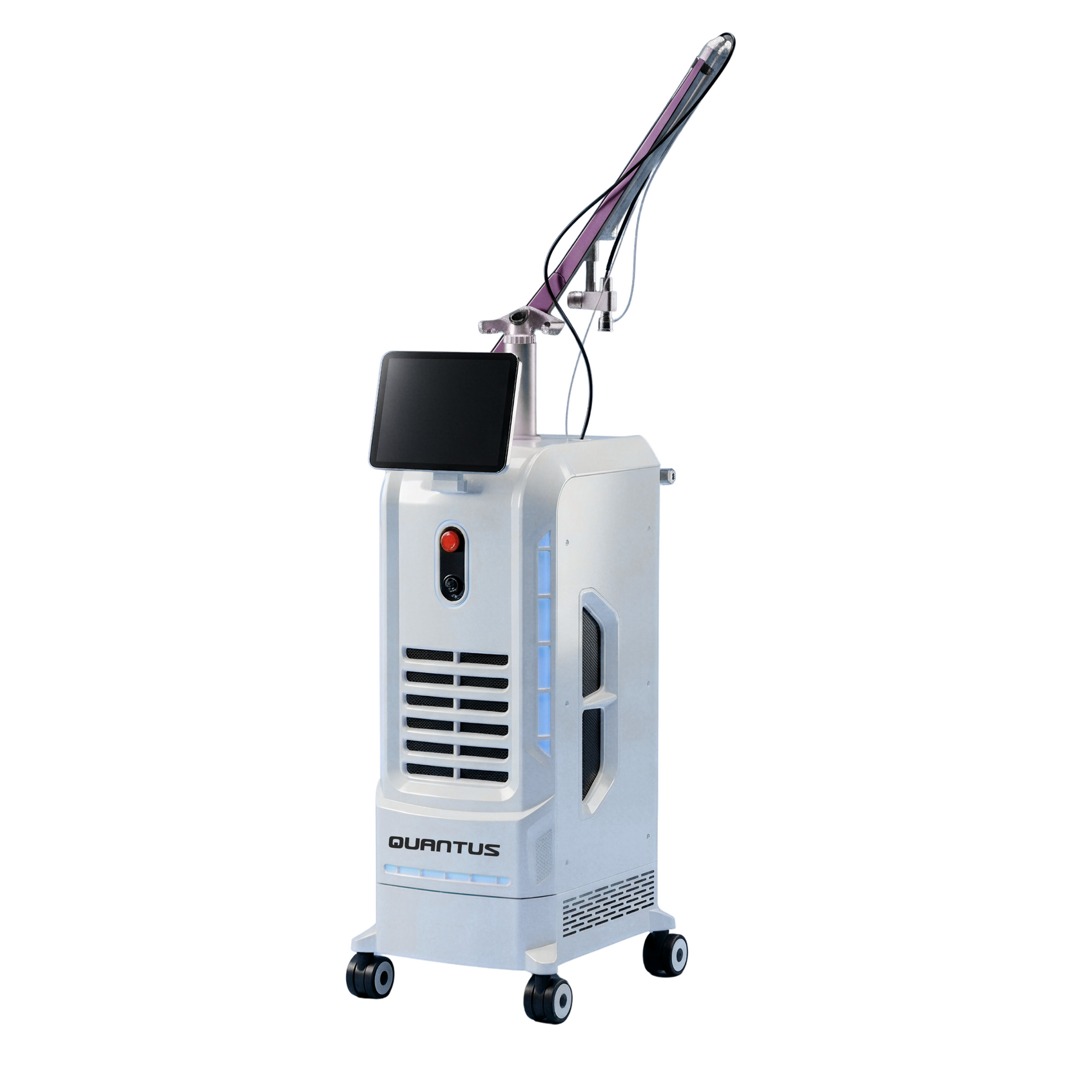

The Quantus Ultra Beam CO2 is a medical-grade Fractional CO2 laser built for dermatologists and aesthetic clinics that demand clinical accuracy, deep results, and zero compromise. With true UltraPulse technology, a 7-joint articulated arm imported from South Korea, and 8 interchangeable handpieces — this is the CO2 laser that handles everything from acne scars and pigmentation to skin tightening and surgical applications.

FDA Approved. CE Certified. Pan India installed and serviced by United Skin Care.

Why the Quantus Ultra Beam CO2 is different

True 60W power to tissue — not on paper. Most CO2 lasers claim high wattage but deliver far less to the treatment area due to energy loss in delivery systems. The Quantus Ultra Beam delivers a true 60W to tissue with minimal loss — meaning real clinical results with fewer sessions.

Adjustable from 1W — no instability at low power. True energy output starts from 1W, solving the common problem of energy instability at low settings. Doctors can perform ultra-precise treatments on delicate areas without risk of thermal damage.

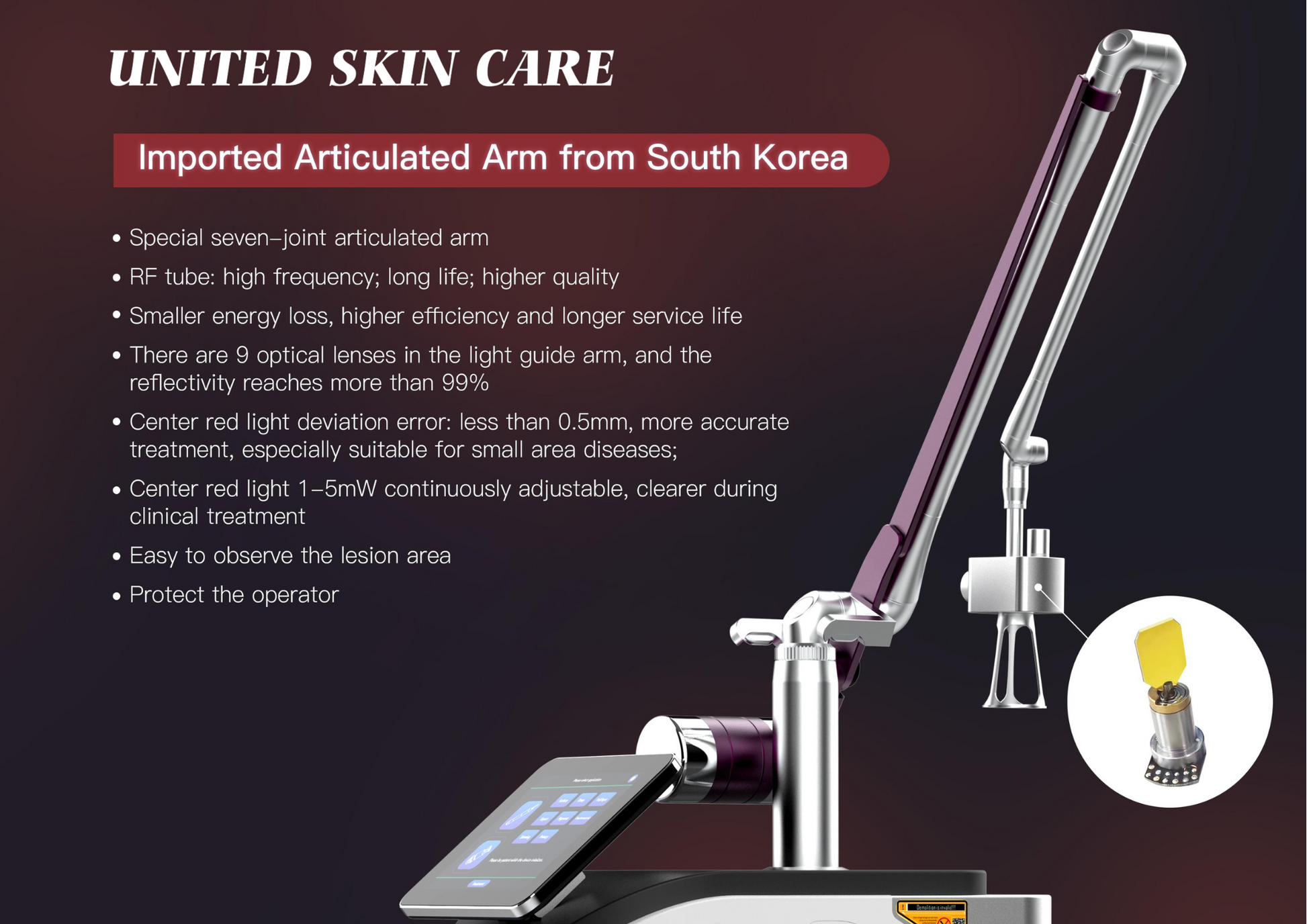

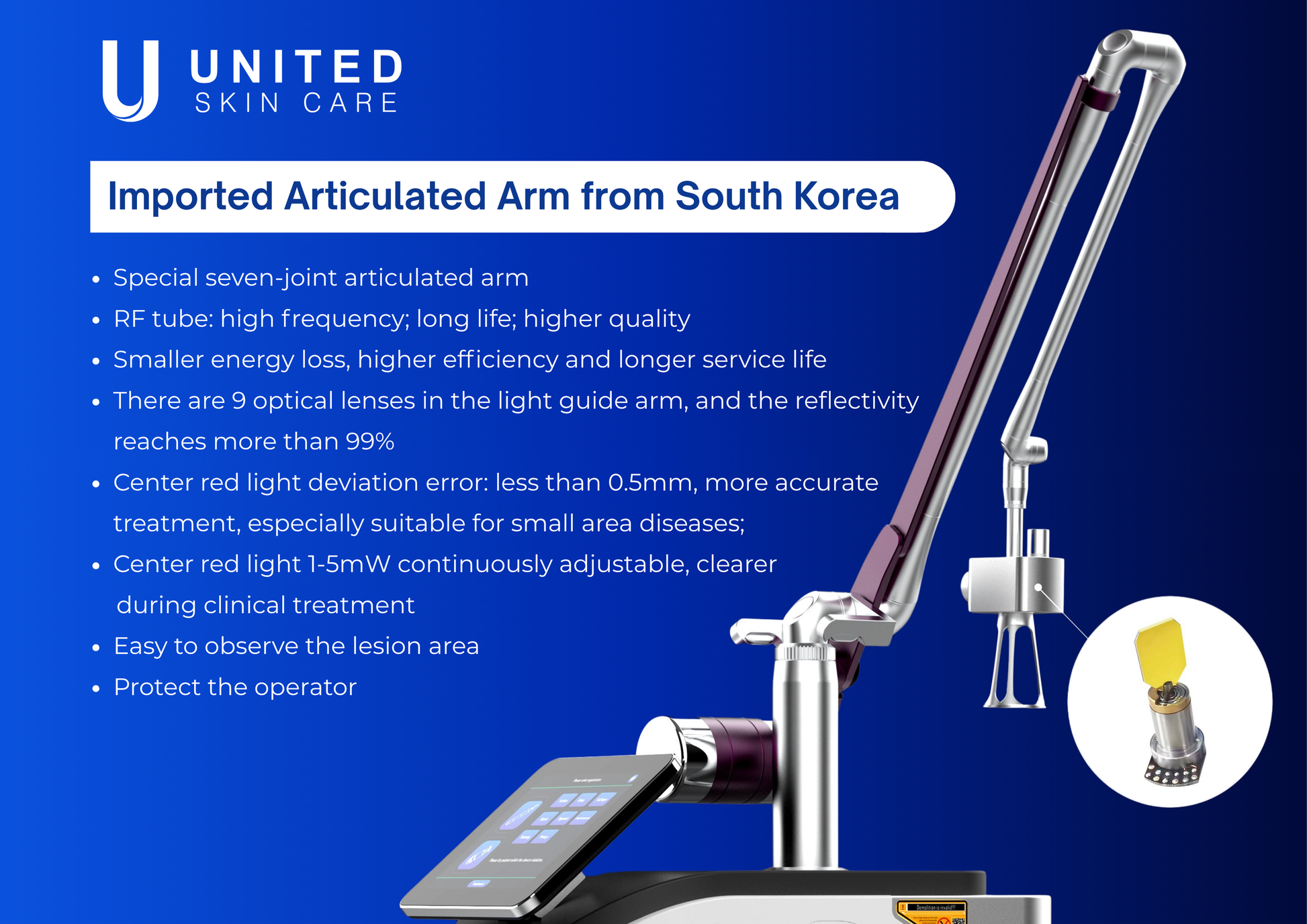

South Korean 7-Joint Articulated Arm — 99%+ reflectivity. The imported articulated arm contains 9 optical lenses with reflectivity exceeding 99%, ensuring maximum energy delivery with minimal scatter. The center red aiming beam has a deviation error of less than 0.5mm — essential for treating small, precise lesion areas. Red light intensity is continuously adjustable from 1–5mW for clear clinical visibility.

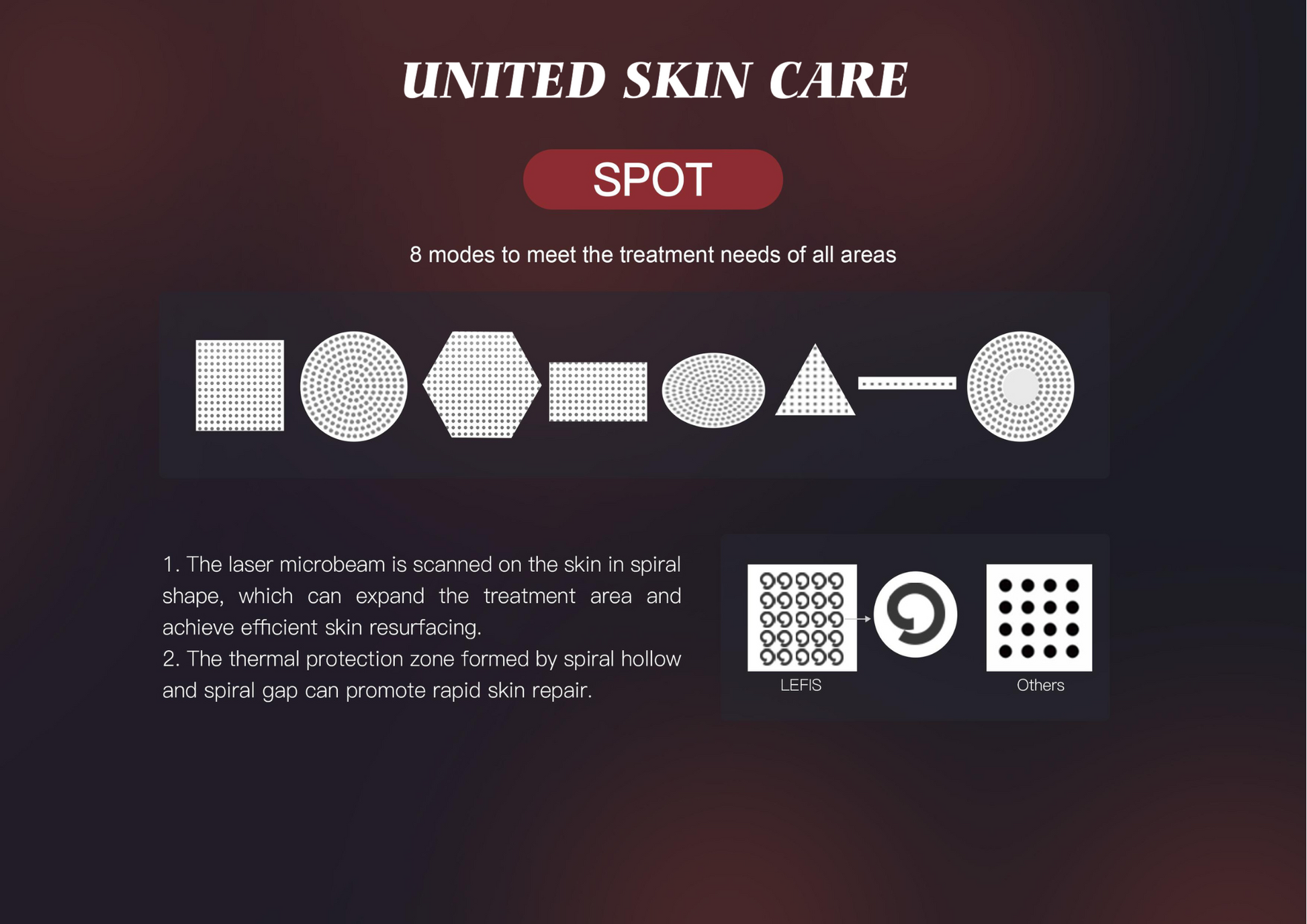

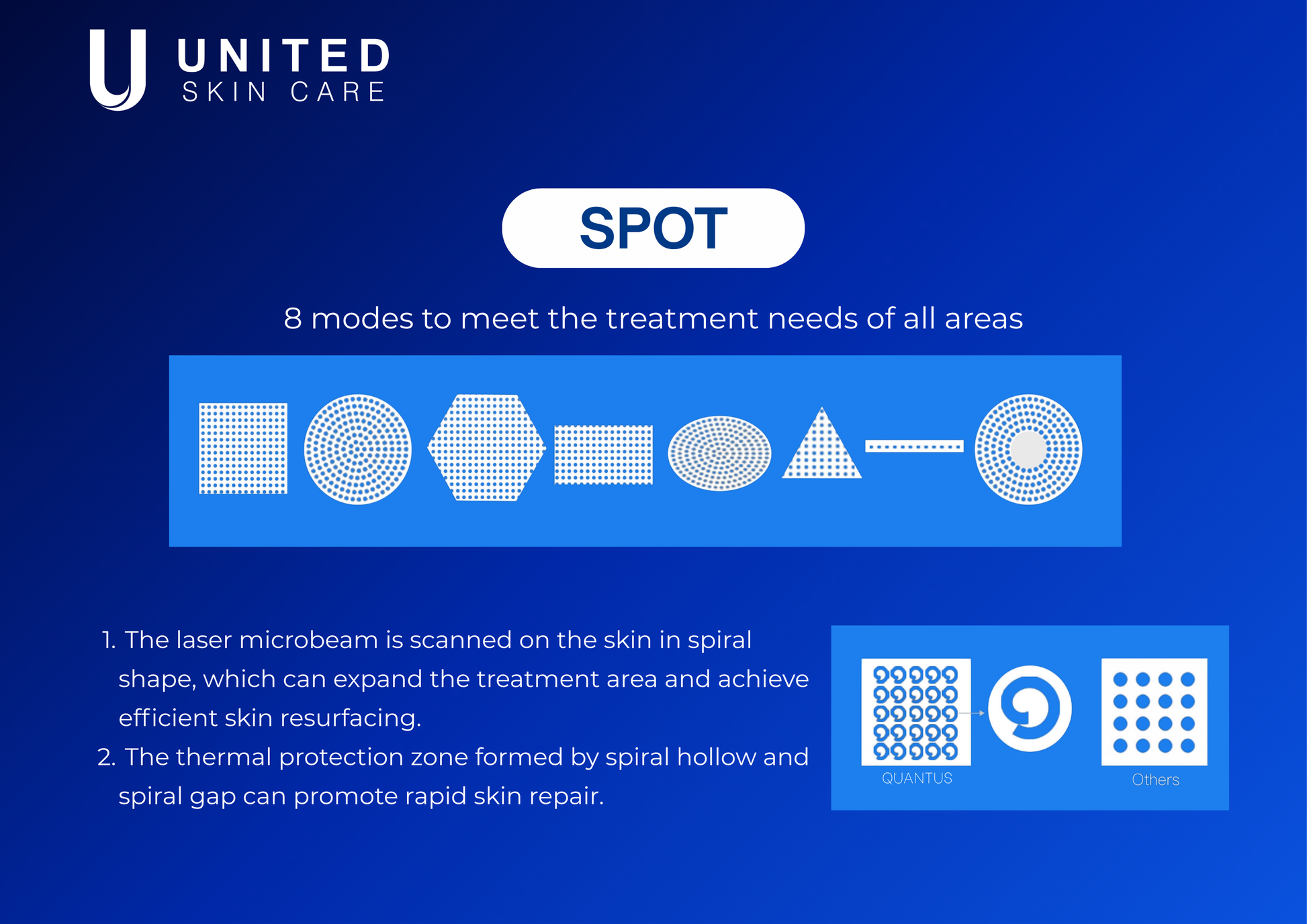

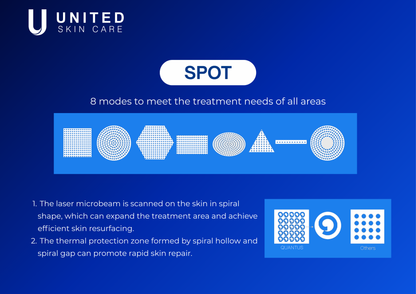

8 spot patterns for every treatment zone. Circle, ellipse, triangle, square, rectangle, hexagon, line, and hollow circle — giving your clinic the flexibility to treat facial resurfacing, acne pits, surgical incisions, and everything in between from a single platform.

Spiral scan technology for faster healing. The laser microbeam scans in a spiral pattern, expanding coverage while the thermal protection zones formed between spirals promote rapid skin repair and shorter downtime for patients.

Clinical Applications

• Acne scar and acne pit resurfacing (patented surface grinding technology)
• Skin tightening and collagen remodeling
• Pigmentation and melasma removal
• Skin whitening and rejuvenation
• Scar removal (surgical, burn, and stretch marks)
• Onychomycosis (nail fungal infection)
• Vaginal tightening (optional vaginal probe)
• Surgical tissue cutting and coagulation

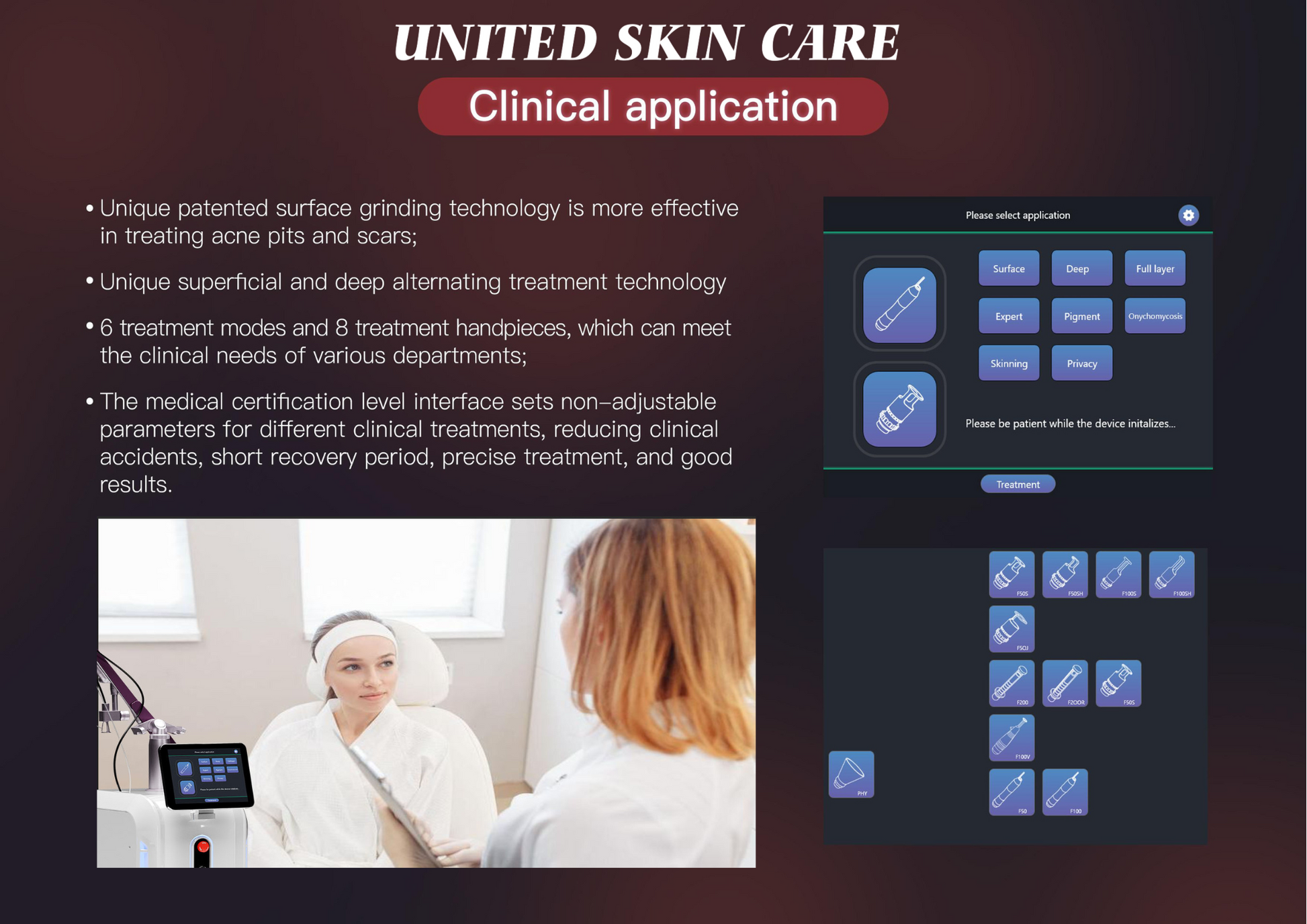

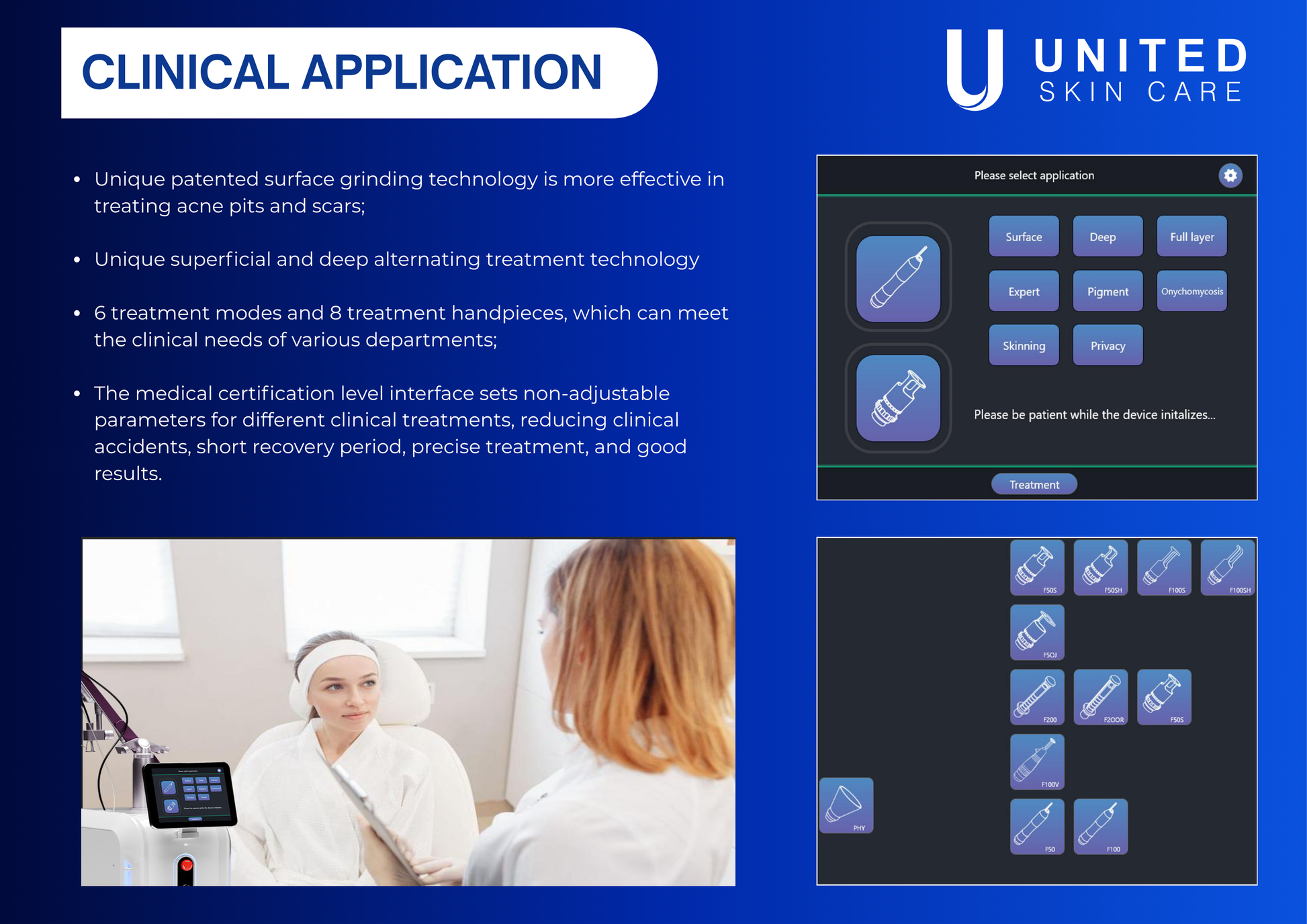

6 Treatment Modes

Surface · Deep · Full Layer · Expert · Pigment · Onychomycosis · Skinning · Privacy (vaginal)

Medical certification-level interface with pre-set, non-adjustable parameters per treatment mode — reducing clinical error and improving consistency of results across your team.

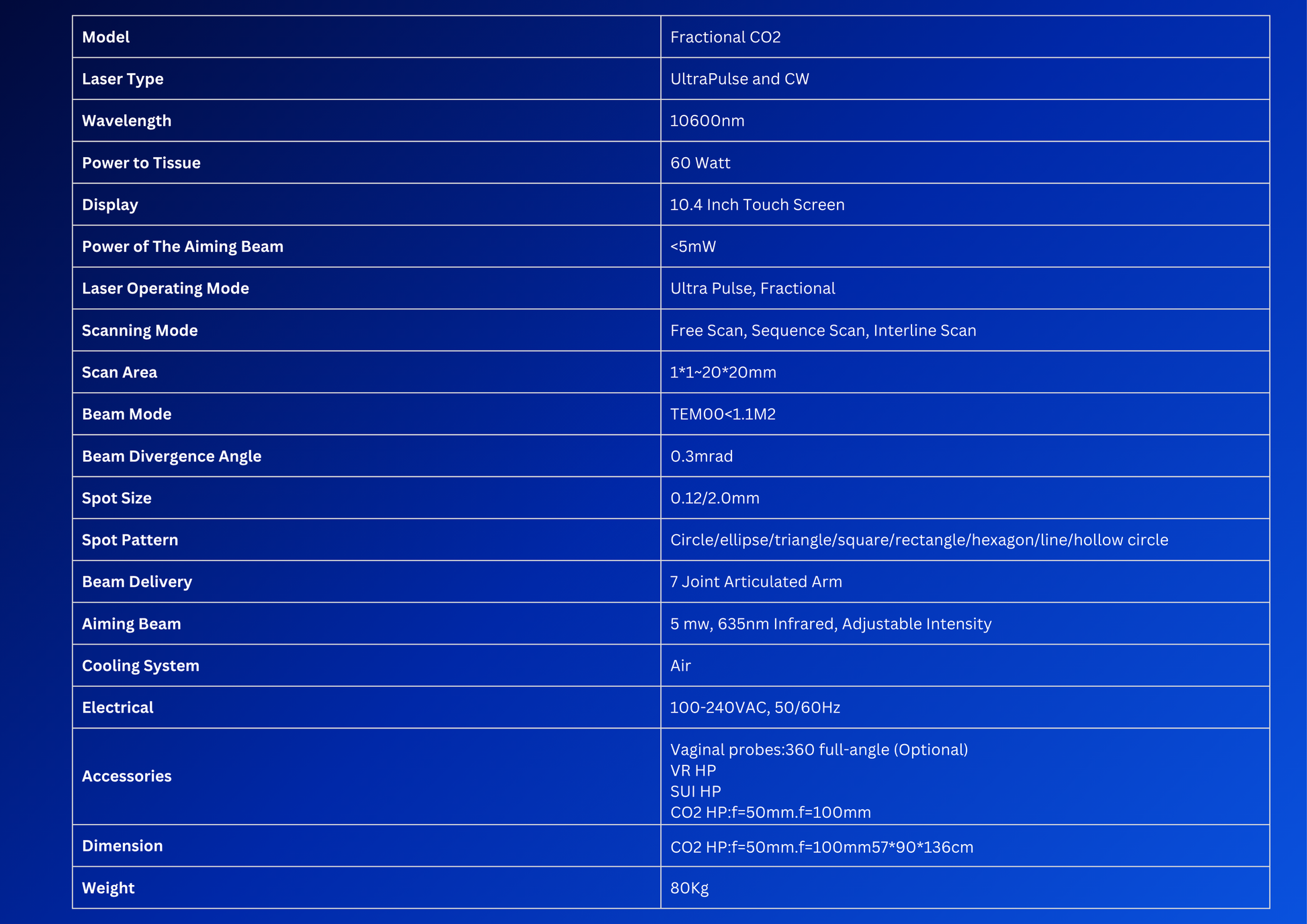

Technical Specifications

• Model: Fractional CO2
• Laser Type: UltraPulse and CW (Continuous Wave)
• Wavelength: 10,600nm
• Power to Tissue: 60 Watt (true output)
• Display: 10.4-inch touch screen
• Aiming Beam: 5mW, 635nm infrared, adjustable intensity
• Laser Operating Mode: Ultra Pulse, Fractional
• Scanning Mode: Free Scan, Sequence Scan, Interline Scan
• Scan Area: 1×1mm to 20×20mm
• Beam Mode: TEM00 <1.1M²
• Spot Size: 0.12mm / 2.0mm
• Spot Patterns: Circle, Ellipse, Triangle, Square, Rectangle, Hexagon, Line, Hollow Circle
• Beam Delivery: 7-Joint Articulated Arm (South Korea imported)
• Cooling System: Air
• Electrical: 100–240VAC, 50/60Hz
• Dimension: 57×90×136cm
• Weight: 80kg

What's included with every purchase

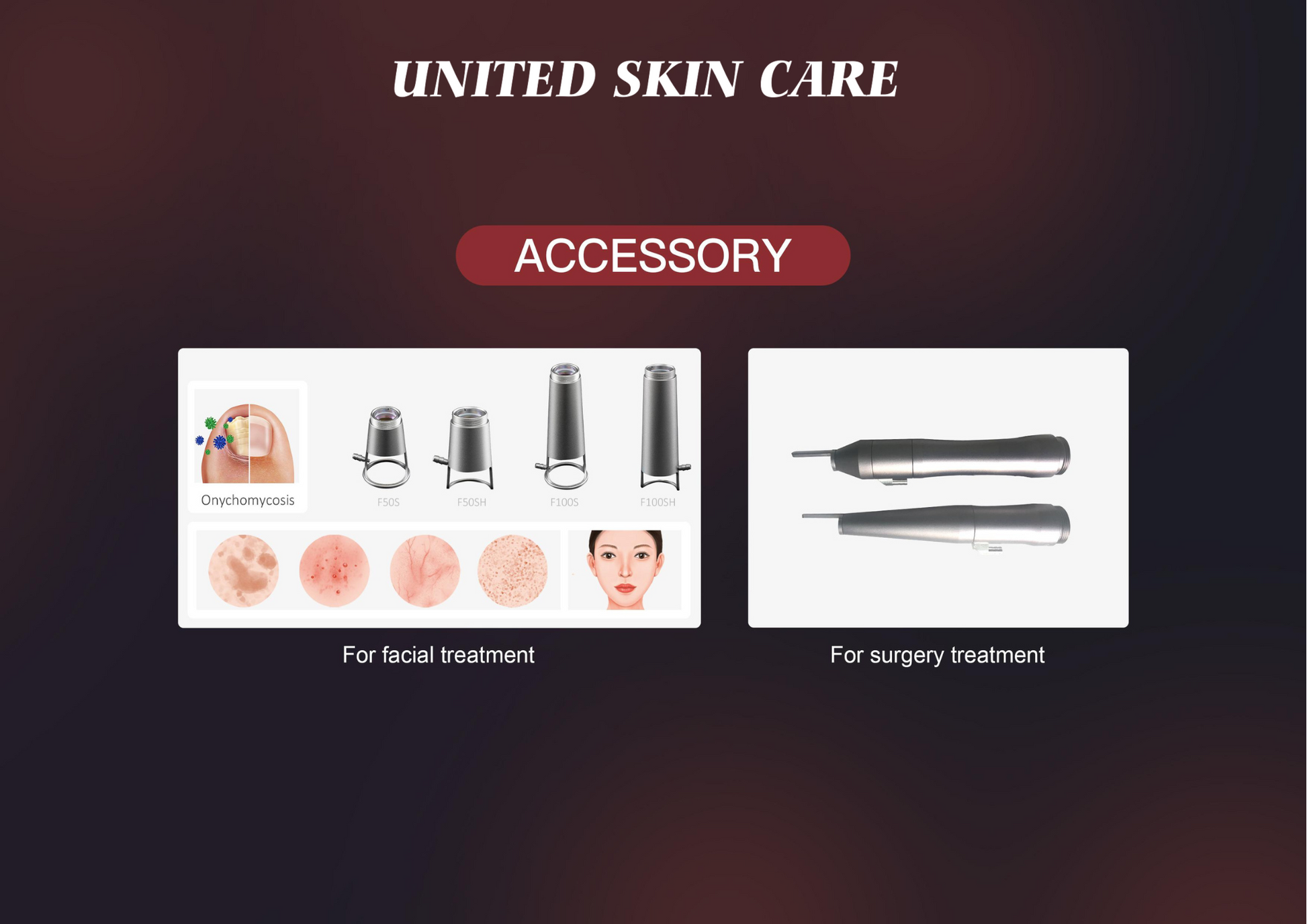

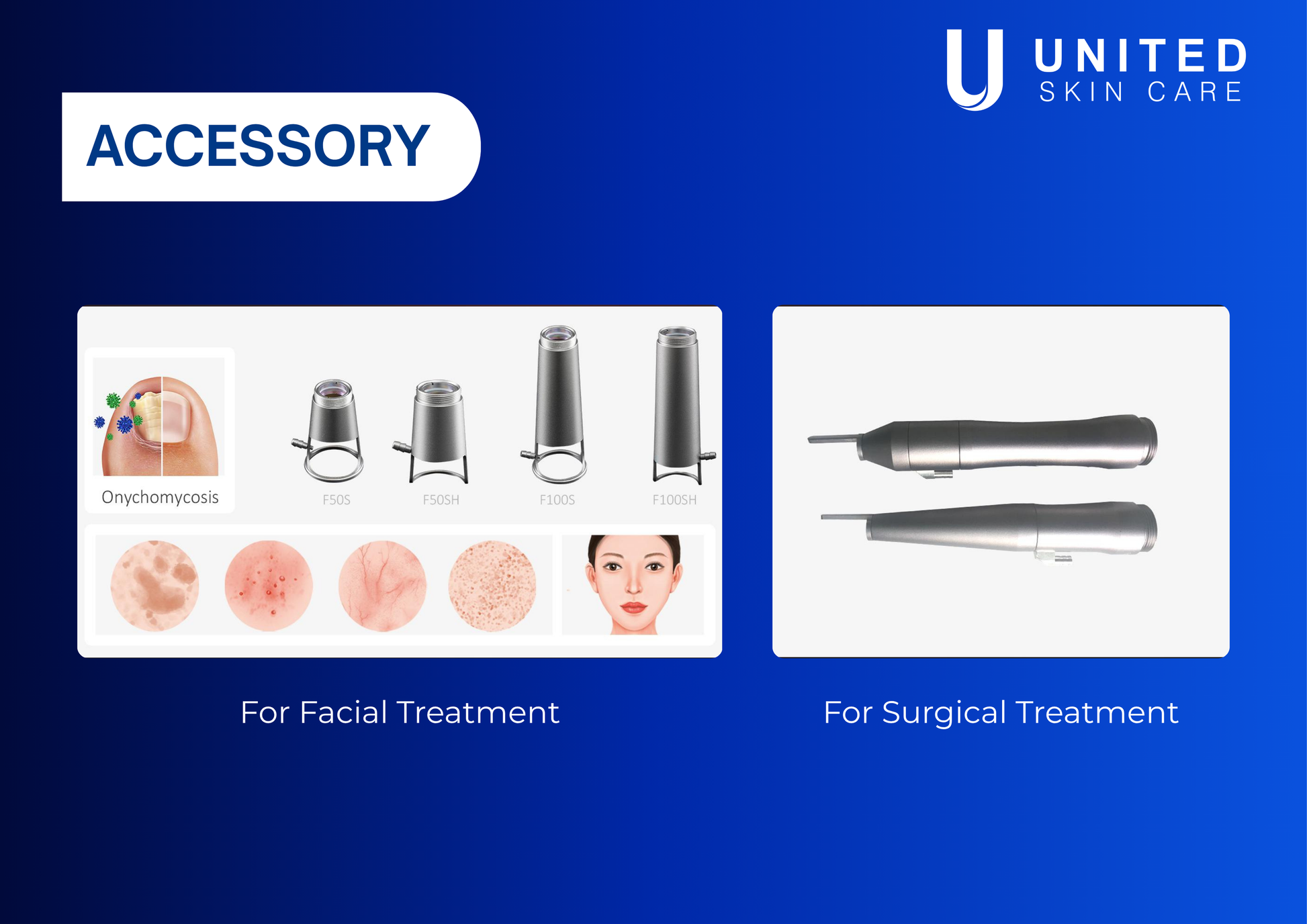

✅ Quantus Ultra Beam CO2 machine ✅ 8 treatment handpieces (facial + surgical) ✅ South Korean 7-joint articulated arm ✅ Onsite installation across India ✅ Professional clinical operation training ✅ 1-year onsite warranty ✅ Pan India service network ✅ Vaginal probe available as optional add-on

📞 For pricing, demo, or EMI options — call or WhatsApp us directly. 🌐 www.unitedskincare.in
