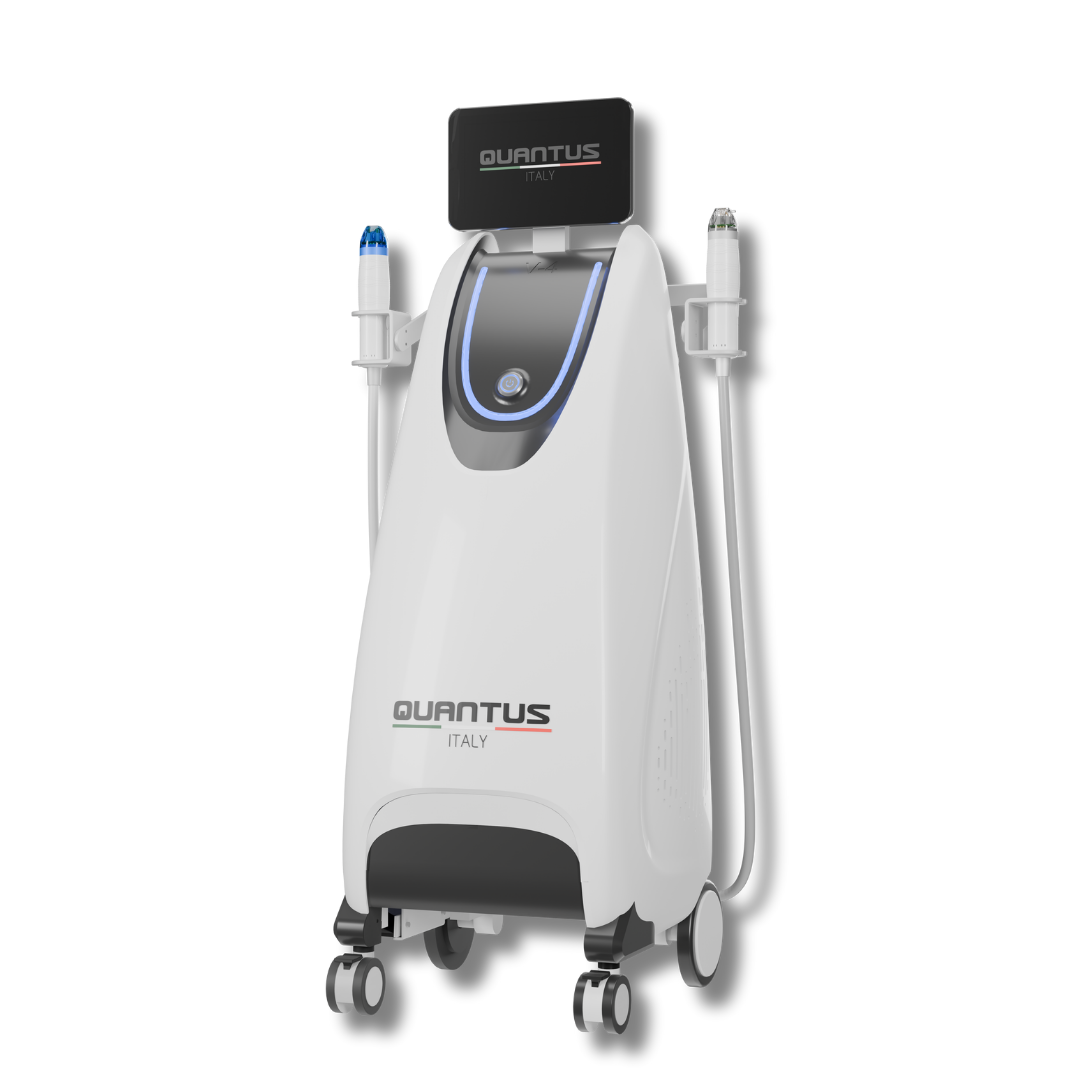

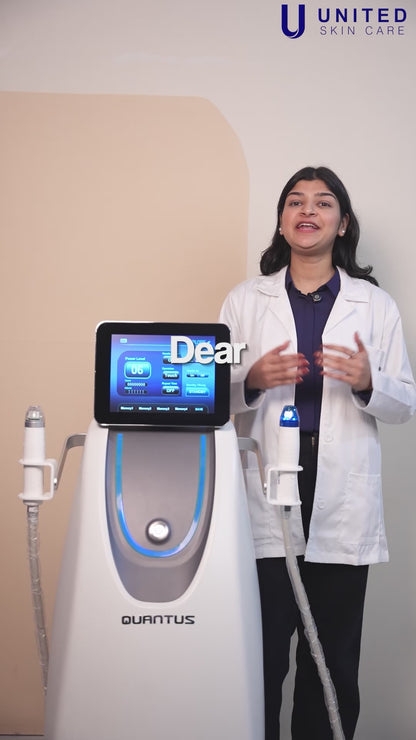

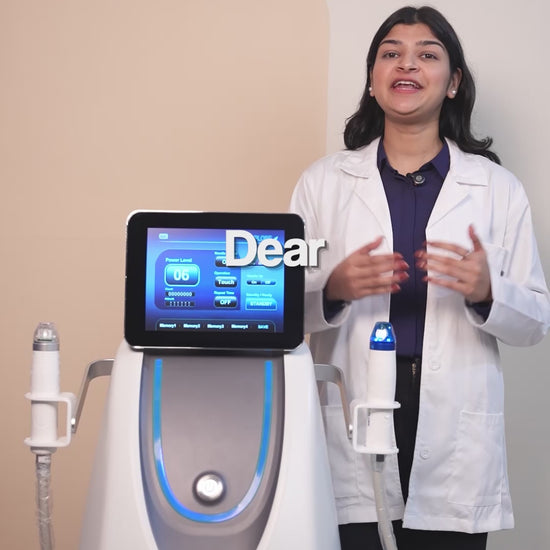

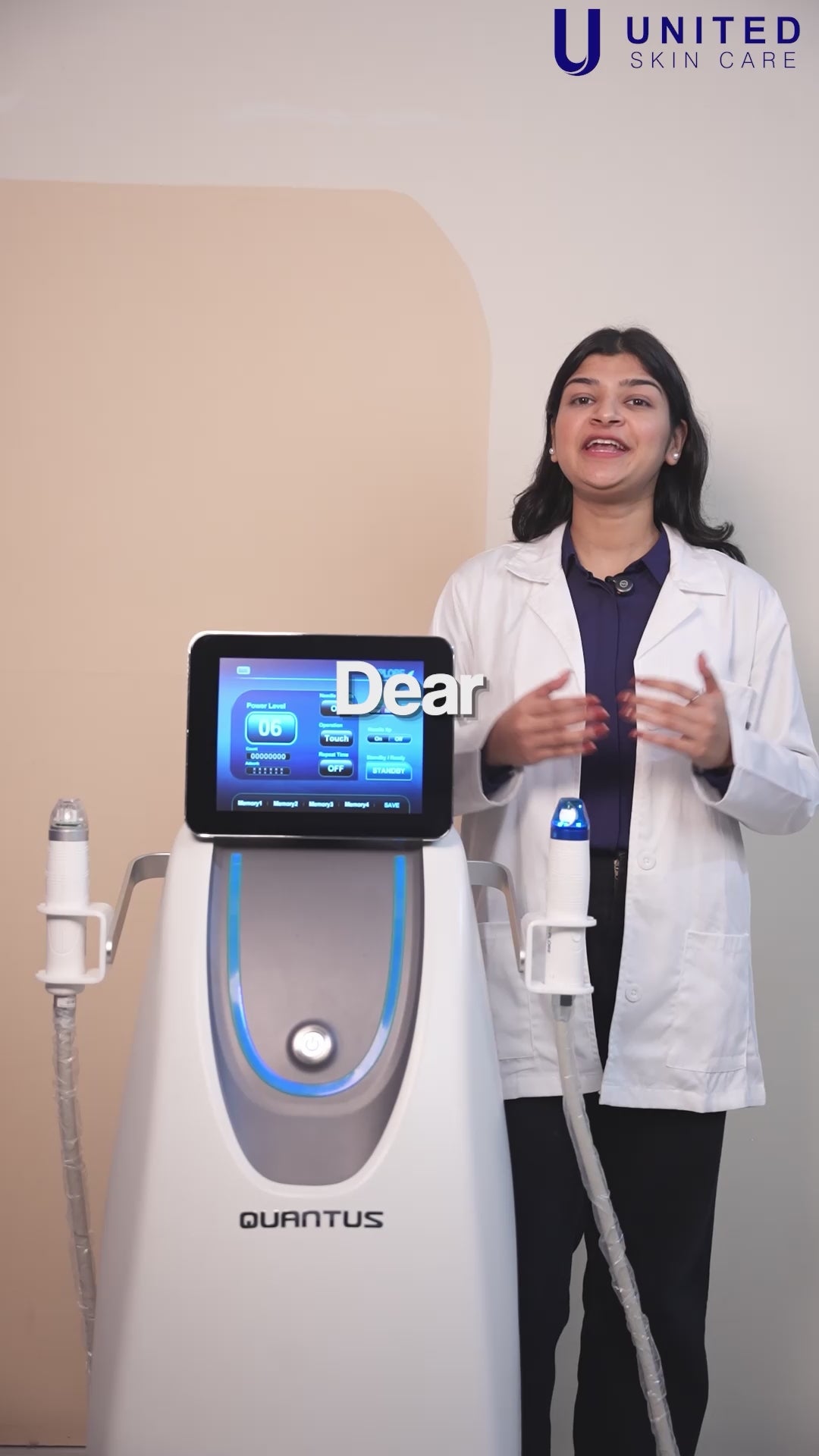

What is the Quantus Magnus MNRF?

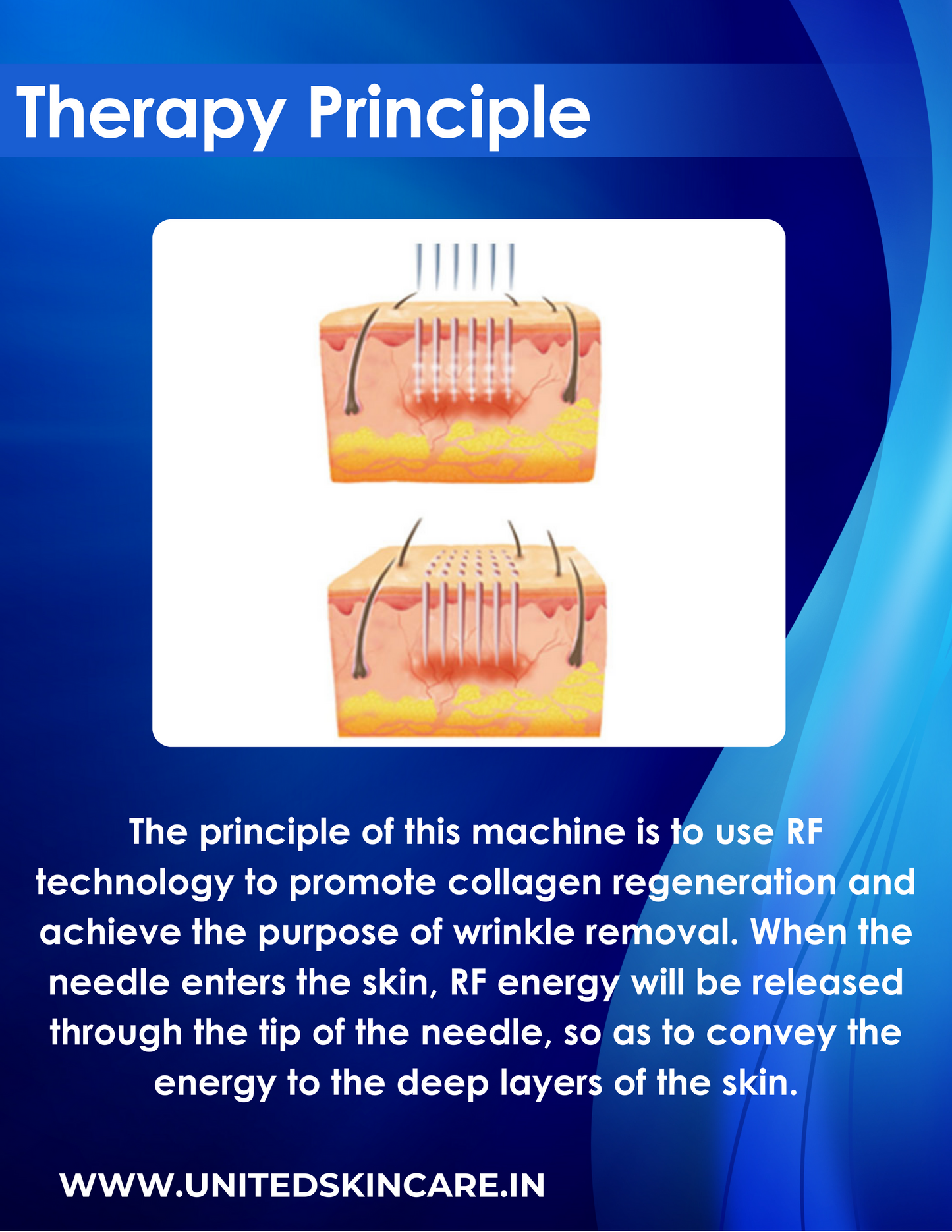

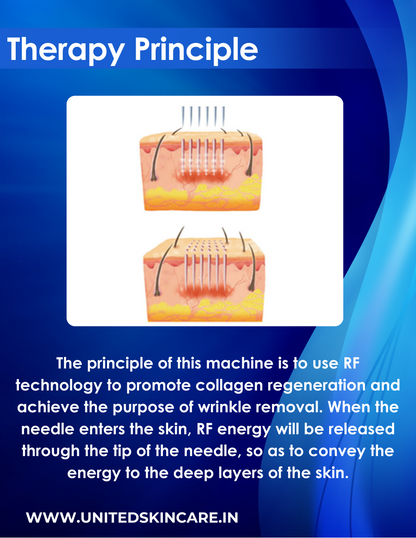

The Quantus Magnus is a microneedling radio frequency (MNRF) machine. Fine gold-plated needles enter the skin to a set depth and release controlled RF (radio frequency, a gentle heat energy) inside the skin. This builds new collagen to treat acne scars, open pores, wrinkles and loose skin with less downtime than ablative lasers.
Key features
-
5 MHz bipolar RF for precise energy delivery.
-
Precise depth control: 0.1 mm to 4 mm, in 0.1 mm steps.
-
Gold-plated needles: good for patients with metal allergies.
-
Stepping motor: needles enter the skin smoothly without a jolt.
-
Vacuum suction (4 levels): holds the skin firmly for even energy delivery.
-

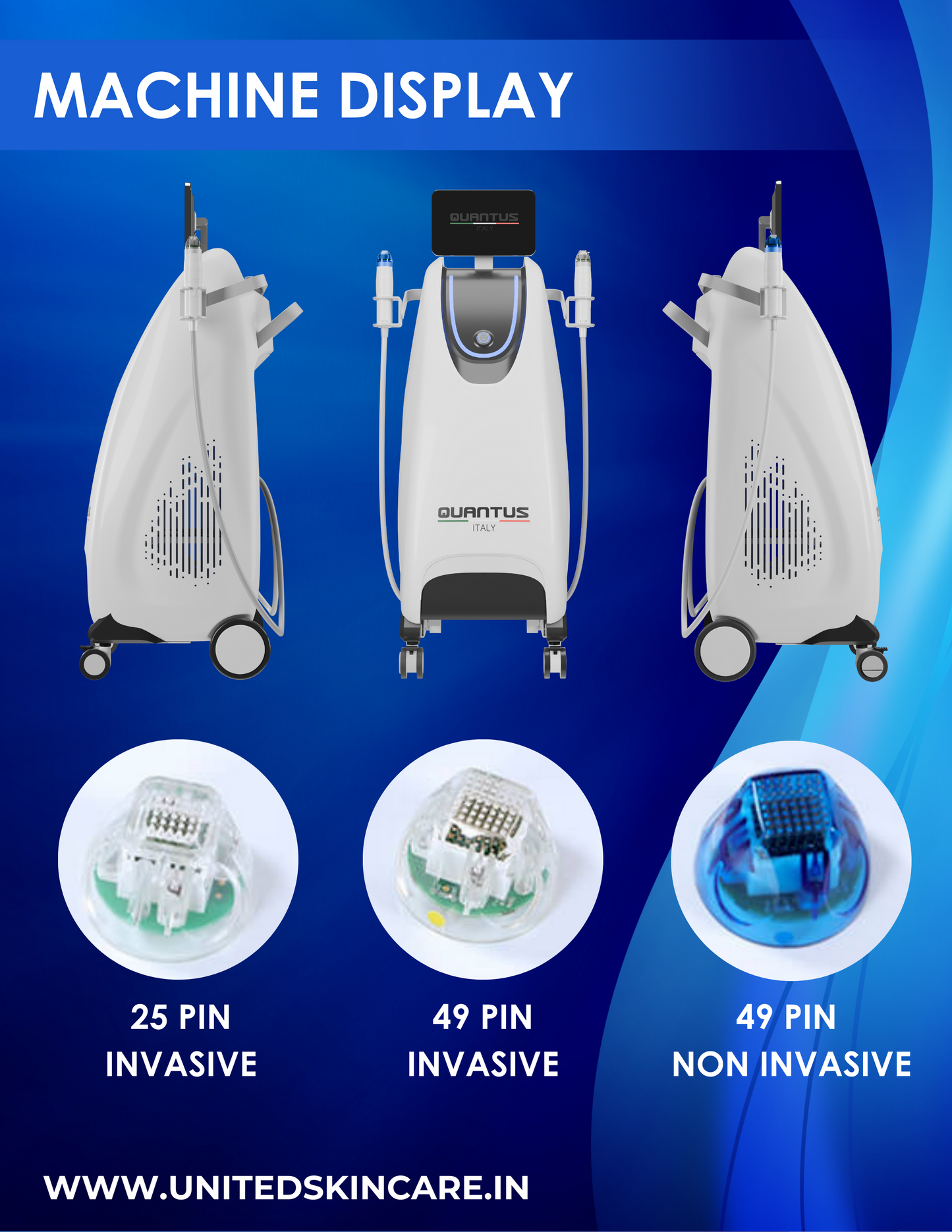

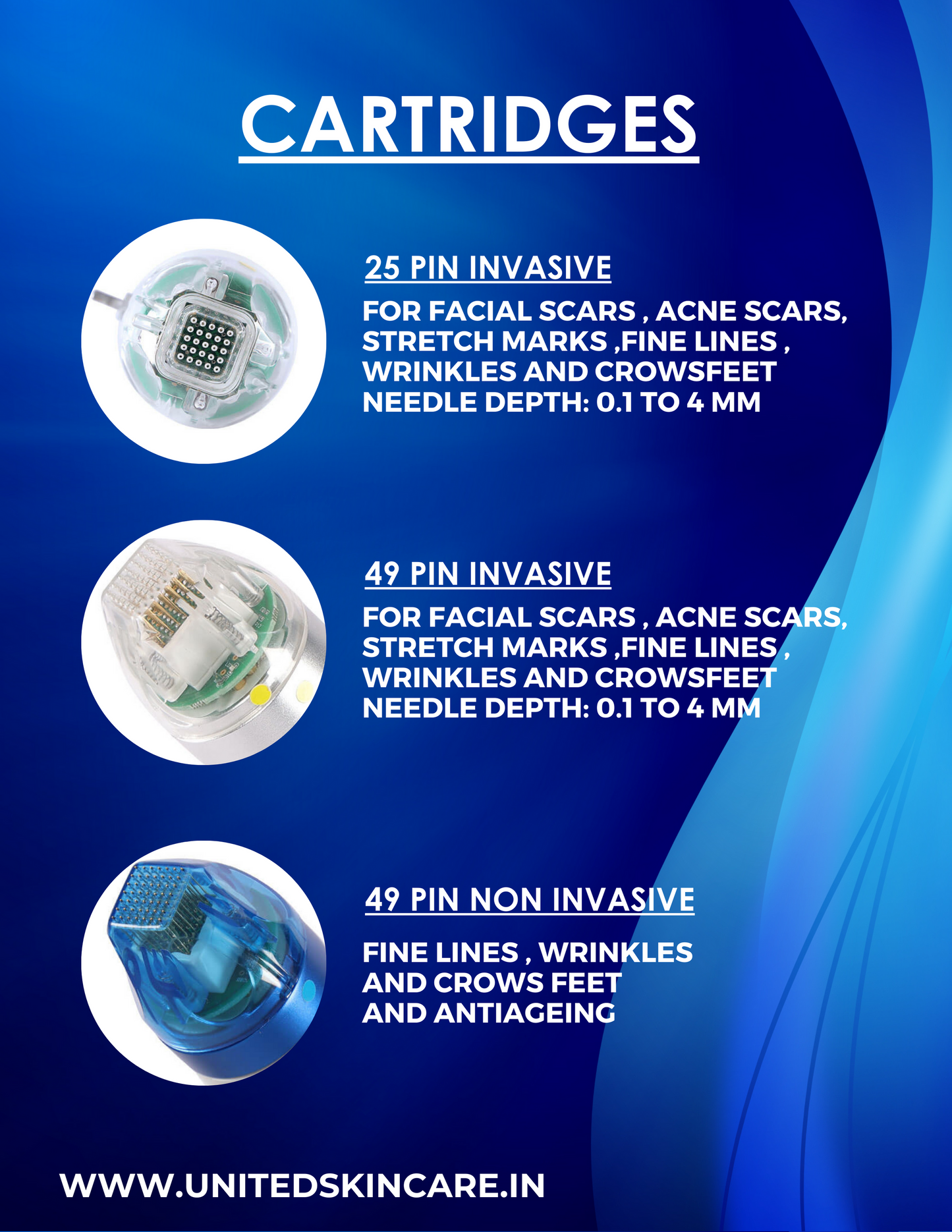

Sterile disposable cartridges: 25-pin invasive, 49-pin invasive and 49-pin non-invasive.
- 8.4-inch colour touch screen.
Treatments
- Acne scars and other scars
- Open pores
- Fine lines, wrinkles and neck lines
- Skin tightening and non-surgical face lift
- Stretch marks
- Skin rejuvenation (face and body)
Specifications
- RF frequency: 5 MHz, bipolar
- RF power: 10–120 levels
- Needle thickness: 0.3 mm
- Needle depth: 0.1–4 mm
- Pulse duration: 0.1–3 s
- Voltage: AC 110V/220V, 50/60 Hz
- Weight: 50 kg
Frequently asked questions
What is MNRF used for?
MNRF is mainly used for acne scars, open pores, wrinkles, skin laxity and stretch marks. It works by triggering new collagen inside the skin.
Is MNRF safe for Indian skin?
Yes. Because the energy is released under the skin surface, MNRF carries a lower risk of post-treatment darkening (PIH) than many lasers, making it popular for darker skin types.
How many sessions are needed for acne scars?
Most patients need 3–6 sessions about 4 weeks apart, depending on scar depth.
What is the difference between Magnus and Astra?
Both are Quantus MNRF machines. The Astra offers up to 7 mm depth at 3.5 MHz, while the Magnus offers 0.1–4 mm depth at 5 MHz.
Can I see a demo?
Yes. Book a live demo at the United Skin Care demo clinic in Vasai, Mumbai, via WhatsApp.
Supplied by United Skin Care (USC), Mumbai – aesthetic machines for clinics across India since 2012, with 10,000+ installations.
